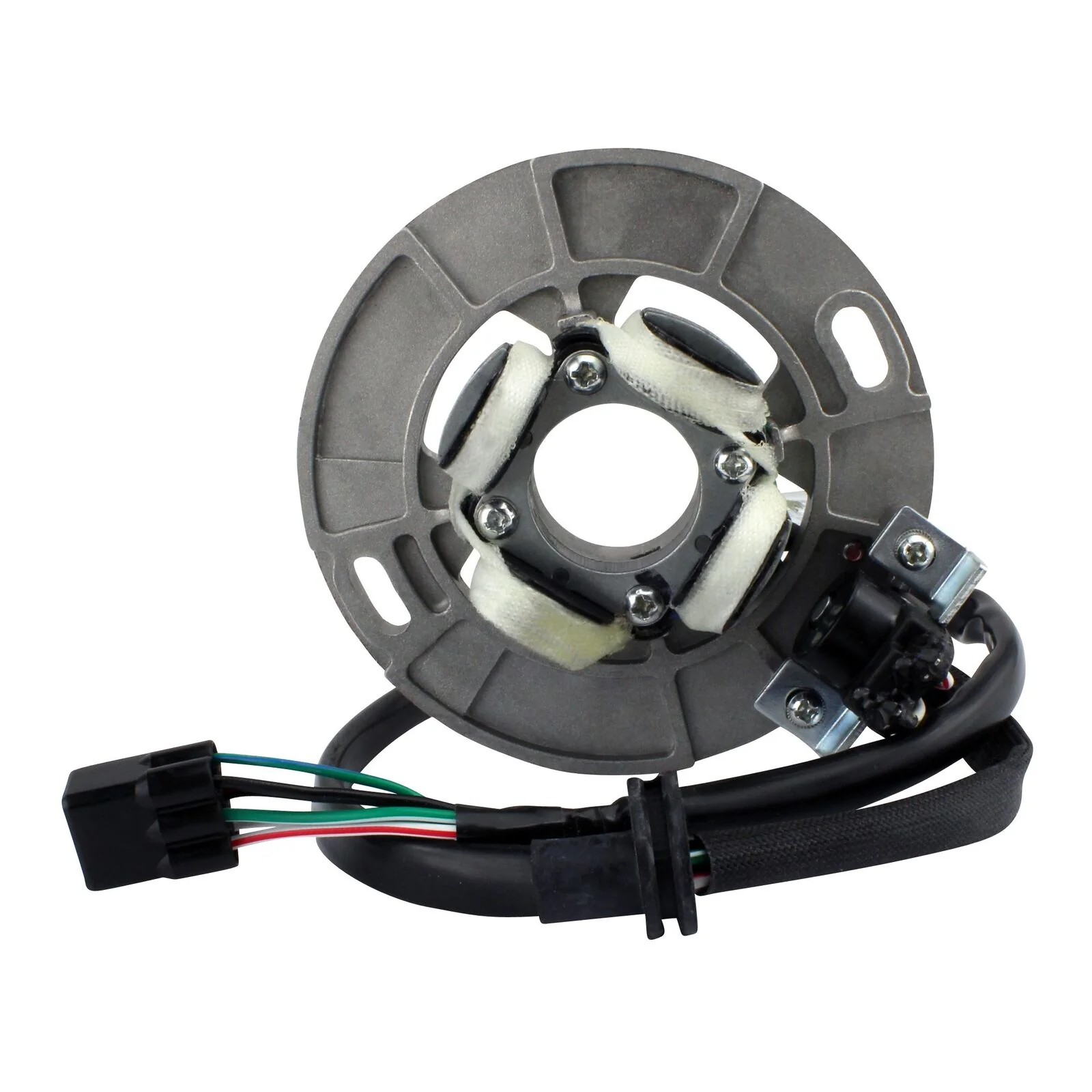

Stator Yamaha YZ65 '18-'24 & YZ85 '02-'24 (RMS010-108281)
Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Made with the highest grade of lamination materials.
- Features the highest grade of copper winding, resistant to 200 degrees Celsius.
- Includes a pick up pulsar coil.
- Comes with connectors.
- Includes a rubber grommet.
- Back plate is included.
- All products are tested before shipping.

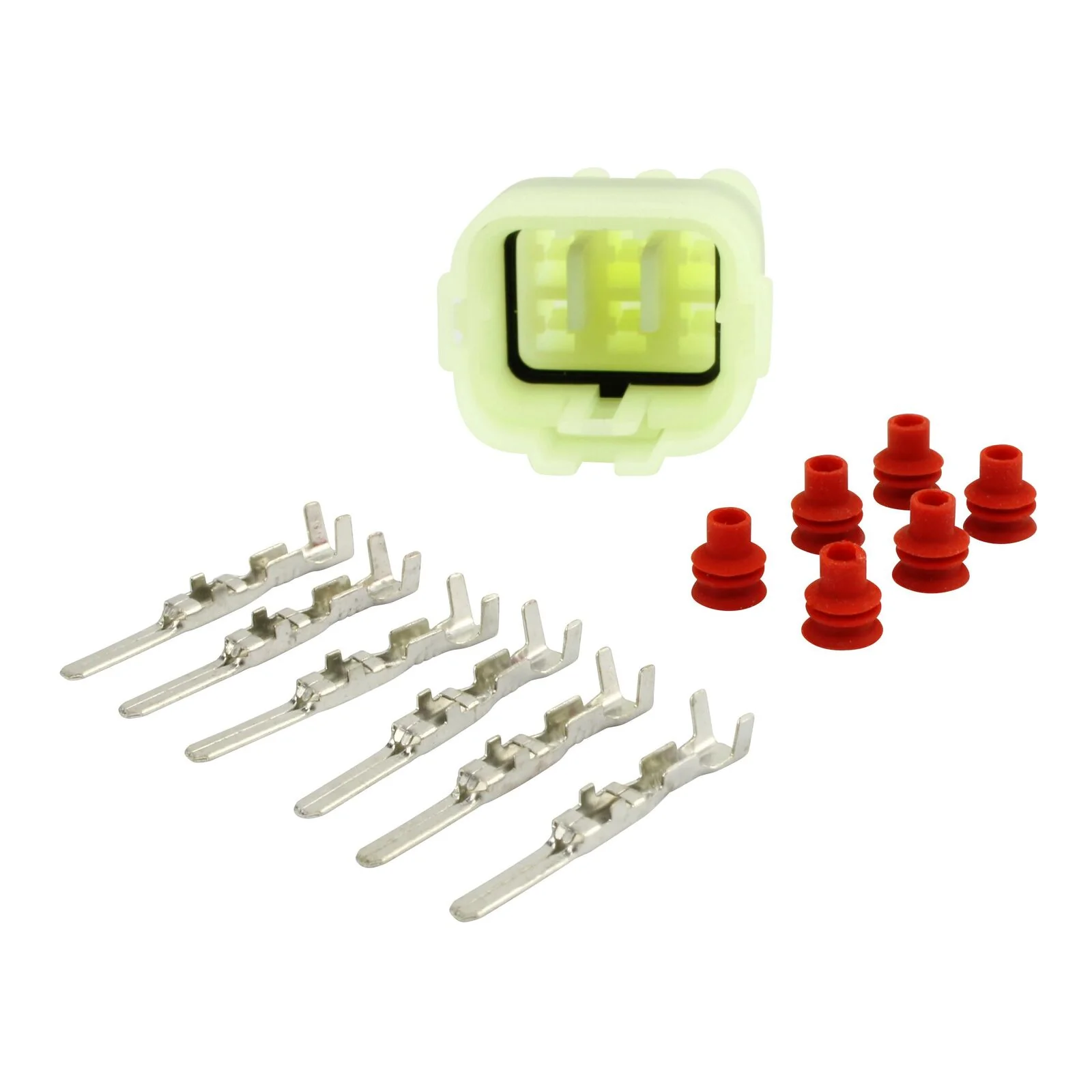

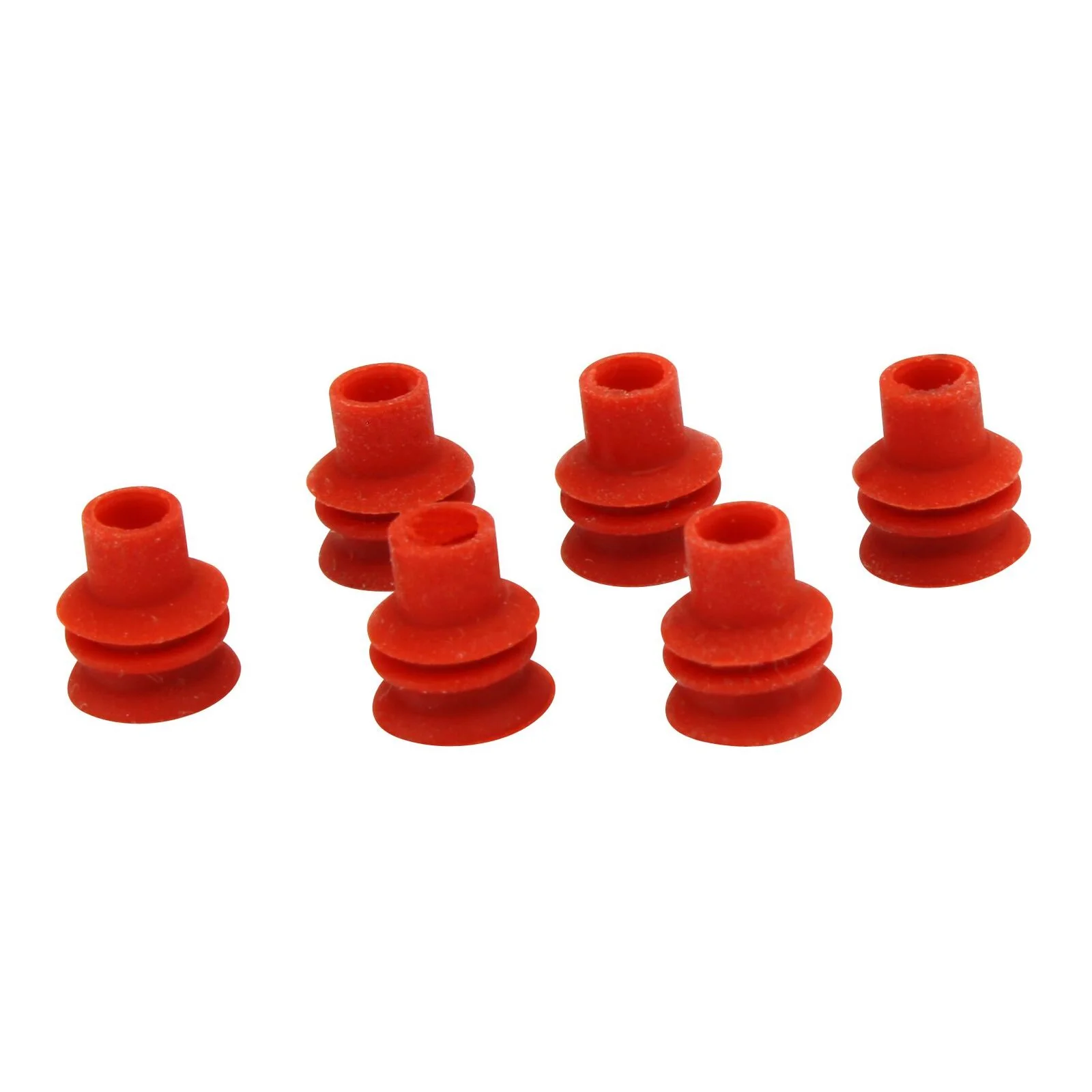

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Dimensions:
- Interior diameter: 27 mm
- Exterior diameter: 109 mm
- Thickness: 32.6 mm
- Length of wires (stator to grommet): 135 mm
- Length of wires (grommet to plug): 410 mm
- Length of pickup coil's wire to grommet: 135 mm
Other Specifications:
- Number of wires: 6
- Number of plugs: 1
- Number of pins: 6
- Number of poles: 4
- Wire to wire resistance:
- Pickup: White/Blue to White/Red = 293 ohms ±20%
- Source: Green/White to Black/Red = 858 ohms ±20%
- Source: Black to Green/Blue = 53 ohms ±20%
